Diagnostic Test

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. Using a scan tool, record and erase Diagnostic Trouble Codes (DTCs).
    3. Cycle the ignition off then back to on.
    4. Open the passenger door to turn the approach lights on.
    5. Turn the passenger side turn signal on.
    6. Fold and unfold the mirrors (if equipped).
    7. Turn the rear defogger on (if equipped with heated mirrors).
    8. Operate the Mirror Adjust switch in all directions several times while monitoring the scan tool for DTCs.
      NOTE:

      After adjusting the mirror in one direction wait at least two seconds before adjusting the mirror in the opposite direction, as this will allow time for an active fault to set if present.

    9. With the scan tool, read the DTCs.

      Does the scan tool display: B2861-15-MIRROR APPROACH LIGHT CONTROL - CIRCUIT SHORT TO BATTERY OR OPEN as active?

      Yes

      • Go To  2

      No

      • The conditions that caused this code to set are not present at this time. Repeat this test again. If this DTC is now present, Go To  2. Otherwise, use the wiring diagram/schematic as a guide and inspect the wiring and connectors.
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  2. CHECK (P553) PASSENGER MIRROR APPROACH LAMP DRIVER CIRCUIT FOR A SHORT TO VOLTAGE

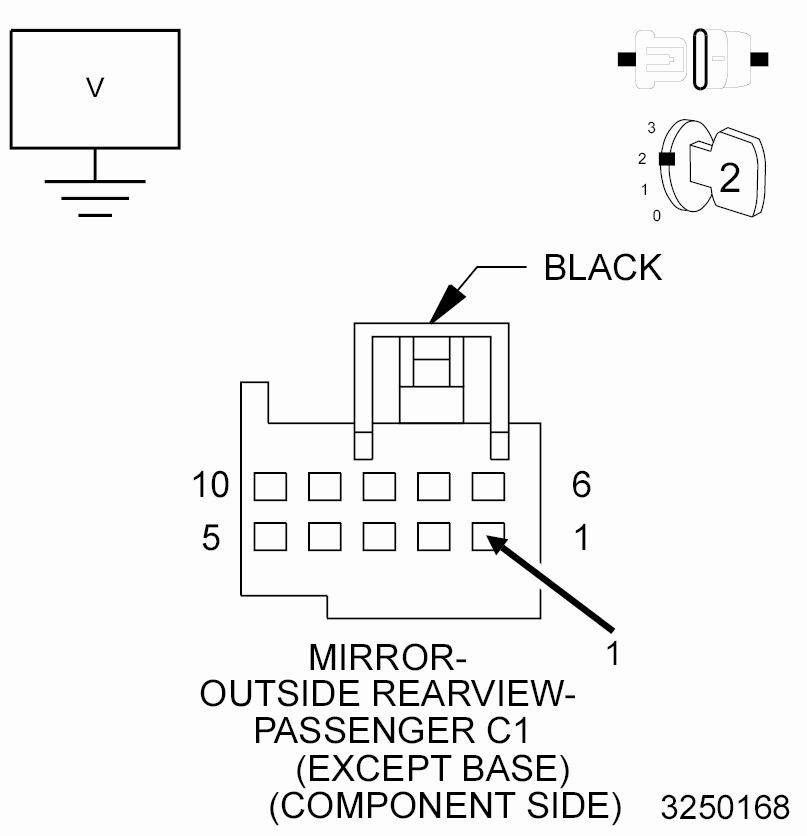

    Fig 1: Checking Passenger Mirror Approach Lamp Driver Circuit For Short To Voltage
    GC0141924Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Passenger Outside Rearview Mirror C1 and C2 (Component Side) harness connectors from the Door Module.
    3. Turn the ignition on.
    4. Measure the voltage between ground and the (P553) Passenger Mirror Approach Lamp Driver circuit in the Passenger Outside Rearview Mirror C1 (Component Side) harness connector.

      Is there any voltage present?

      Yes

      No

      • Go To  3
  3. CHECK (P553) PASSENGER MIRROR APPROACH LAMP DRIVER CIRCUIT AND (P554) PASSENGER APPROACH LAMP RETURN CIRCUIT FOR AN OPEN
    Fig 2: Checking Passenger Mirror Approach Lamp Driver Circuit For Short To Passenger Blind Spot/Approach Return Circuit
    GC0141922Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Measure the resistance between the (P553) Passenger Mirror Approach Lamp Driver circuit and the (P554) Passenger Blind Spot/Approach Return circuit at the Passenger Outside Rearview Mirror C1 (Component Side) connector.

      Is the resistance below 10.0 Ohms?

      Yes

      • Go To  4

      No

  4. CHECK (P553) PASSENGER MIRROR APPROACH LAMP DRIVER CIRCUIT FOR A SHORT TO ANOTHER MIRROR DRIVER OR SIGNAL CIRCUIT

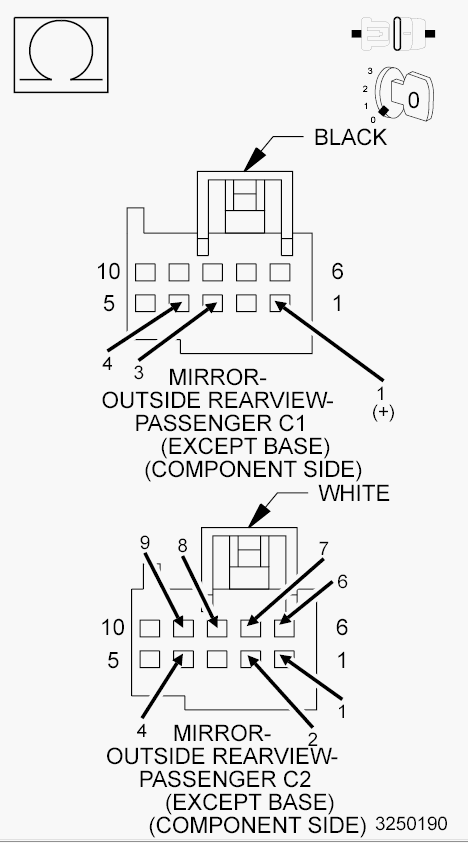

    Fig 3: Checking Passenger Mirror Approach Lamp Driver Circuit For Short To Another Mirror Driver Or Signal Circuit
    GC0141926Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (P553) Passenger Mirror Approach Lamp Driver circuit (C1-1) and each of the designated Mirror Driver and Signal circuits in the Passenger Outside Rearview Mirror C1 and C2 (Component Side) connectors.

      Is the resistance below 10k Ohms for any measurement?

      Yes

      No

      • Inspect the wiring and connectors for damage and repair as necessary. If the wiring and connectors are okay, replace the Door Module in accordance with the Service Information. Refer to MODULE, DOOR, REMOVAL .
      • Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
