TEST FOR INTERMITTENT CONDITION
NOTE:
It is recommended that a battery charger be connected and set on low during this test.

NOTE:
Be sure the thumbwheels on the Dimmer Module are turned fully on during this test.
1. Turn the ignition on.
2. With the scan tool, record and erase the DTCs.
3. Cycle the ignition on to off three times and leave in the Lock position.
4. Turn the park lamps on.
5. Wait one minute.
6. With the scan tool, read the active DTCs.
  Does the scan tool display: B2860-11-DOOR AMBIENT LAMP CONTROL - CIRCUIT SHORT TO GROUND?

  Yes
  - Go To 2
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
PASSENGER DOOR HANDLE LAMP SHORTED

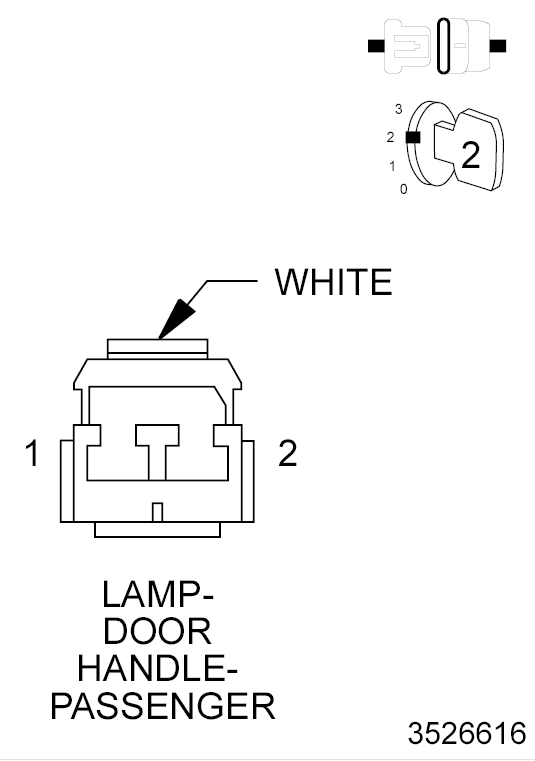

Fig 1: Checking Passenger Door Handle Lamp For Short
Courtesy of CHRYSLER GROUP, LLC
1. With the scan tool, erase the DTCs.
2. Turn the ignition off.
3. Remove the inner door panel trim in accordance with the Service Information. Refer to PANEL, DOOR TRIM, REMOVAL .
4. Make sure the Passenger Door Handle Lamp connector is disconnected.
5. Re-connect the Passenger Door Map Pocket Lamp connector.
6. Be sure the park lamps are still on.
7. Turn the ignition on.
8. Wait one minute.
9. With the scan tool, read the active DTCs.
  Does the scan tool display: B2860-11-PASSENGER DOOR AMBIENT LAMP - CONTROL CIRCUIT SHORT TO GROUND as Active?

  Yes
  - Go To 3
  No
  - Replace the Passenger Door Handle Lamp Assembly.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
PASSENGER DOOR MAP POCKET LAMP SHORTED

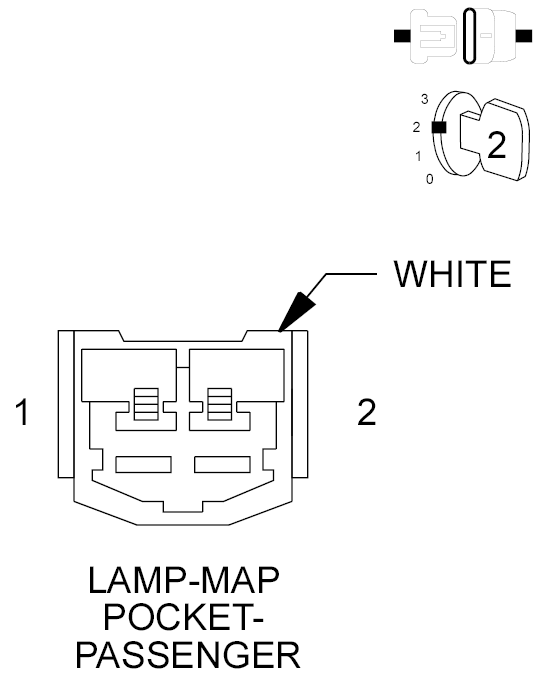

Fig 2: Checking Passenger Door Map Pocket Lamp For Short
Courtesy of CHRYSLER GROUP, LLC
1. With the scan tool, erase the DTCs.
2. Turn the ignition off.
3. Disconnect the Passenger Door Map Pocket Lamp connector.
4. Be sure the park lamps are still on.
5. Turn the ignition on.
6. Wait one minute.
7. With the scan tool, read the active DTCs.
  Does the scan tool display: B2860-11-DOOR AMBIENT LAMP - CONTROL CIRCUIT SHORT TO GROUND as Active?

  Yes
  - Go To 4
  No
  - Replace the Passenger Door Map Pocket Lamp Assembly.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
(M35) PASSENGER DOOR AMBIENT LAMP DRIVER CIRCUIT SHORTED TO GROUND

Fig 3: Checking Passenger Door Ambient Lamp Driver Circuit For Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Passenger Door Module C5 harness connector.
3. Measure the resistance between Ground and the (M35) Passenger Door Ambient Lamp Driver circuit in the PDM C5 harness connector.
  Is the resistance below 20K Ohms?

  Yes
  - Repair the short to ground in the (M35) Passenger Door Ambient Lamp Driver circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Go To 5
(M35) PASSENGER DOOR AMBIENT LAMP DRIVER CIRCUIT SHORTED TO THE (M36) PASSENGER DOOR LIGHTING RETURN CIRCUIT

Fig 4: Measuring Resistance Between Passenger Door Ambient Lamp Driver Circuit & Passenger Door Lighting Return Circuit
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance between the (M35) Passenger Door Ambient Lamp Driver circuit and the (M36) Passenger Door Lighting Return circuit in the PDM C5 harness connector.
  Is the resistance below 20k Ohms?

  Yes
  - Repair the short between the (M35) Passenger Door Ambient Lamp Driver circuit and the (M36) Passenger Door Lighting Return circuit.
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
  No
  - Replace the Passenger Door Module in accordance with the Service Information. Refer to MODULE, DOOR, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to STANDARD PROCEDURE .
