SWITCH, Hood Ajar: Removal: Striker

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

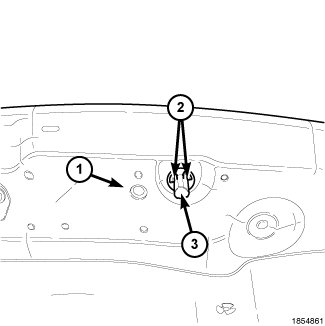

Fig 1: Hood Switch Components
GC0086782Courtesy of CHRYSLER LLC
  1. Unlatch and open the hood.
  2. Release the three lock tabs (2) on the hood striker (3) and pull the striker away from the inner hood panel (1) to remove the striker from the vehicle.
