Right Rear Cable

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

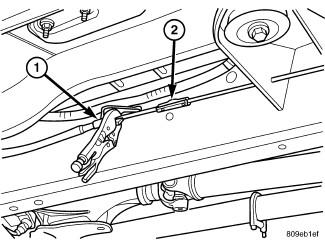

Fig 1: Lock Out Parking Cable
GC0091777Courtesy of CHRYSLER LLC
1 - LOCKING PLIERS
2 - PARKING BRAKE CABLE
  1. Raise and support the vehicle.
  2. Lockout the parking brake cable (2) .
  3. Loosen the brake cable at the equalizer and adjuster nut.

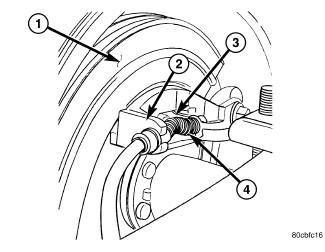

    Fig 2: Removing Brake Cable From Brake Lever (Right Rear Cable)
    GC0083395Courtesy of CHRYSLER LLC
    1 - SUPPORT PLAT
    2 - CABLE MOUNT
    3 - PARK BRAKE LEVER
    4 - CABLE
  4. Remove the right cable from the front cable.
  5. Remove the right cable from the equalizer.
  6. Remove the cable from the frame bracket.
  7. Remove the cable from the axle bracket.
  8. Remove the cable bracket from the shock bracket.
  9. Remove the brake cable (4) from the brake lever (3). Refer toFig 2.
