Rear Park Brake Cable
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

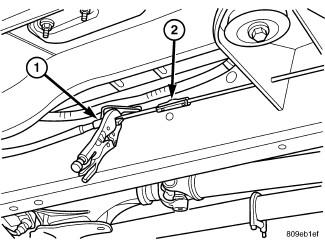

| 1 - LOCKING PLIERS |
| 2 - PARKING BRAKE CABLE |
- Raise and support the vehicle.
- Lockout the parking brake cable (2). Refer to Fig 1.

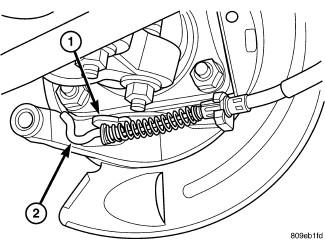

1 - LEVER 2 - CABLE END - Loosen cable adjuster nut.
- Remove the rear park brake cable from the intermediate park brake cable.
- Compress tabs on cable end fitting on the rear park brake cable to the frame mount bracket. Then pull the cable through the bracket.
- Disengage the park brake cable (2) from behind the rotor assembly. Refer to Fig 2.
- Compress cable tabs on each cable end fitting at the brake cable support plate.
- Remove the cables from the brake cable support plates.
