Left Rear Cable

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

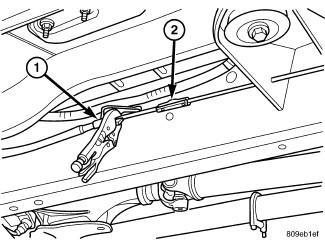

Fig 1: Lock Out Parking Cable
GC0091778Courtesy of CHRYSLER LLC
1 - LOCKING PLIERS
2 - PARKING BRAKE CABLE
  1. Raise and support the vehicle.
  2. Lockout the parking brake cable (2) .
  3. Loosen the brake cable at the equalizer and adjuster nut.

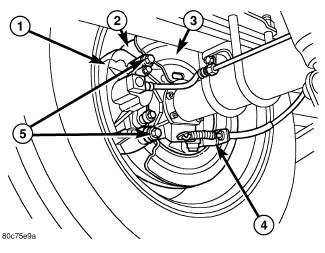

    Fig 2: Removing Brake Cable From Brake Lever (Left Rear Cable)
    GC0083396Courtesy of CHRYSLER LLC
    1 - DISC BRAKE CALIPER
    2 - DISC BRAKE ROTOR
    3 - DUST SHIELD
    4 - REAR PARKING BRAKE CABLE
    5 - DISC BRAKE CALIPER MOUNTING BOLTS
  4. Remove the left brake cable from the equalizer.
  5. Remove the brake cable (4) from the frame bracket.
  6. Remove the brake cable (4) from the brake lever. Refer toFig 2.
