Front Parking Brake Cable

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

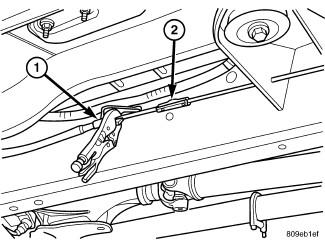

Fig 1: Lock Out Parking Cable
GC0091773Courtesy of CHRYSLER LLC
1 - LOCKING PLIERS
2 - PARKING BRAKE CABLE
  1. Raise and support vehicle.
  2. Lockout the parking brake cable (2) Refer toFig 1.
  3. Loosen adjusting nut to create slack in front cable.
  4. Remove the front cable from the cable connector.
  5. Compress cable end fitting at underbody bracket and remove the cable from the bracket.
  6. Lower vehicle.
  7. Push ball end of cable out of pedal clevis with small screwdriver.

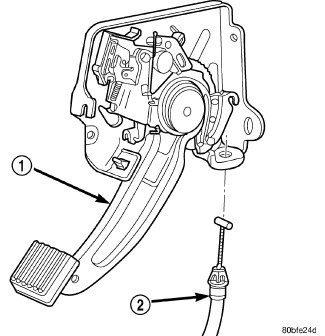

    Fig 2: Parking Brake Pedal
    GC0091774Courtesy of CHRYSLER LLC
    1 - PARK BRAKE PEDAL
    2 - FRONT CABLE
  8. Compress cable end fitting at the pedal bracket (1) and remove the cable (2) Refer toFig 2.
  9. Remove the left cowl trim and sill plate.
  10. Pull up the carpet and remove the cable from the body clip.
  11. Pull up on the cable and remove the cable with the body grommet.
