Right Rear Cable

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

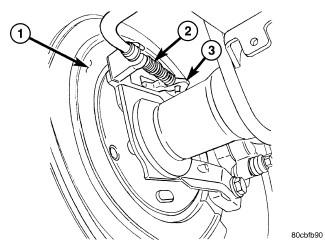

Fig 1: Installing Brake Cable To Brake Lever (Right Rear Cable)

Courtesy of CHRYSLER LLC

1 - SUPPORT PLATE

2 - CABLE

3 - LEVER

Install the brake cable (2) to the brake lever (3). Refer toFig 1.
Install the cable bracket to the shock bracket.
Install the cable to the axle bracket.
Install the cable to the frame bracket.
Install the right cable to the equalizer.
Install the right cable to the front cable.
Adjust the brake cable at the equalizer and using the adjuster nut.
