Rear Park Brake Cable
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

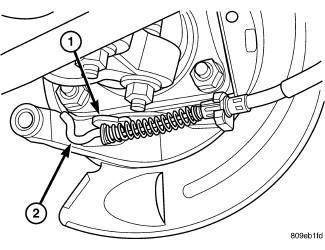

| 1 - LEVER |
| 2 - CABLE END |
- Push each cable end (2) through the brake cable support plate hole until the cable end fitting tabs lock into place.NOTE:
Pull on the cable to ensure it is locked into place.
- Push the cable through the frame bracket.
- Lock the left cable end fitting tabs into the frame bracket hole.
- Install the rear cables into the tensioner rod behind the rear of the brake assembly.
- Install the cable to the intermediate cable connector.
- Release and remove the lock out device.
- Perform the park brake adjustment procedure. Refer to TENSIONER, Parking Brake Cable , Adjustments .
- Remove the supports and lower the vehicle.
