Left Rear Cable
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

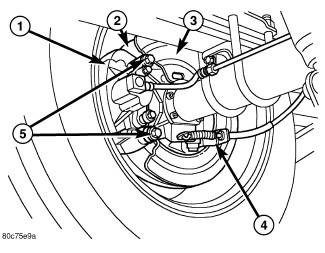

| 1 - DISC BRAKE CALIPER |
| 2 - DISC BRAKE ROTOR |
| 3 - DUST SHIELD |
| 4 - REAR PARKING BRAKE CABLE |
| 5 - DISC BRAKE CALIPER MOUNTING BOLTS |
- Install the brake cable (4) to the brake lever .
- Install the brake cable to the frame bracket.
- Install the left brake cable to the equalizer.
- Adjust the brake cable at the equalizer and adjuster nut.
