Front Parking Brake Cable
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

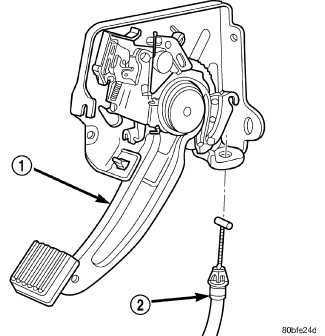

| 1 - PARK BRAKE PEDAL |
| 2 - FRONT CABLE |
- From inside the vehicle, insert the cable end fitting (2) into the hole in the pedal assembly (1).
- Seat the cable retainer in the pedal assembly (1).
- Engage the cable ball end in clevis on the pedal assembly.
- Route the cable through the floorpan and install the body grommet.
- Place the carpet down and install the left cowl trim and sill plate.
- Raise and support the vehicle.
- Route the cable through the underbody bracket and seat the cable end fitting in the bracket.
- Connect the cable to the cable connector.
- Perform the park brake adjustment procedure. Refer to TENSIONER, Parking Brake Cable , Adjustments .
- Lower the vehicle.
