Rear Tube / Hose Assembly - Heavy Duty
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

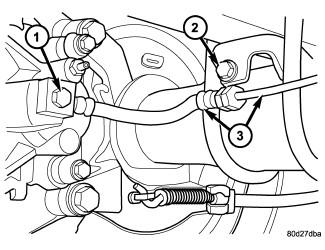

| 1 - BANJO BOLT |
| 2 - MOUNTING BOLT |
| 3 - REAR TUBE / HOSE ASSEMBLY |
- Install the hose (3).
- Install the banjo bolt (1) at the caliper and tighten fitting bolt to 27 N.m (245 in. lbs.).
- Install the mounting bolt (2) for the brake hose (3) at the axle.
- Install the brake line located at the axle.
- Lower the vehicle and remove the support.
- Remove the prop rod from the brake pedal.
- Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed. . Refer to STANDARD PROCEDURE - BLEEDING .
