Rear Brake Hose - Heavy Duty (Hd)

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

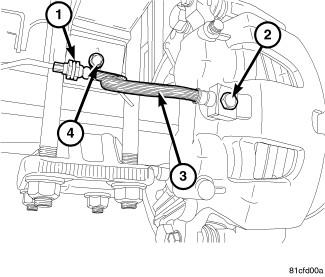

Fig 1: Identifying Rear Brake Hose

Courtesy of CHRYSLER LLC

Install the hose (3).
Install the banjo bolt (2) at the caliper and tighten fitting bolt to 27 N.m (245 in. lbs.).
Install the mounting bolt (4) for the brake hose (3) at the axle.

Fig 2: Identifying Rear Speed Sensor, Mounting Bolt, And Sensor Wire Harness
Courtesy of CHRYSLER LLC
Install the brake line (2) located at the axle.
Lower the vehicle and remove the support.
Remove the prop rod from the brake pedal.
Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed. . Refer to STANDARD PROCEDURE - BLEEDING .
