Rear Brake Hose - 1500 Series

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

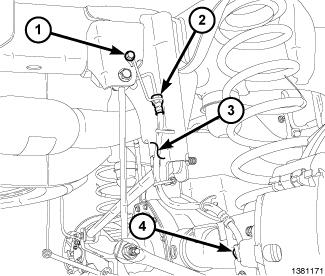

Fig 1: Locating Brake Hose Retainer Clip Bolt

Courtesy of CHRYSLER LLC

Position the brake line. Install the brake hose retainer clip bolt (1) located at the frame and tighten to 20 N.m (15 ft. lbs.).
Install the banjo bolt (4) at the caliper using two new washers and tighten to 28 N.m (21 ft. lbs.).

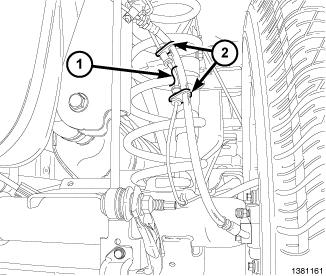

Fig 2: Locating Antilock Sensor Harness & Routing Clips
Courtesy of CHRYSLER LLC
Connect the antilock sensor harness (1) to the routing clips (2).

Fig 3: Locating Rear Junction Block
Courtesy of CHRYSLER LLC

NOTE:
The right brake line has three push type retainers, and the left brake line has only one push type retainer.
Install the brake line retainer clip(s) (7, left side shown in illustration)
Install the appropriate line connector (1 or 6) to the junction block (2) located on the frame and tighten to 19 N.m (169 in. lbs.).
Remove the supports and lower the vehicle.
Remove the prop rod from the brake pedal.
Bleed the area of repair for the brake system.If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed. . Refer to STANDARD PROCEDURE - BLEEDING .
