Front Brake Hose
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

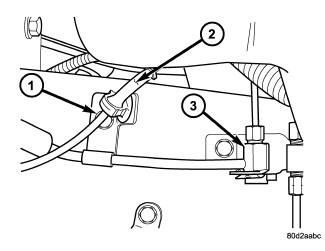

| 1 - MOUNTING BOLT |
| 2 - WHEEL SPEED SENSOR WIRE |
| 3 - BRAKE HOSE |
- Install the hose (3).
- Install the mounting bolt (1) for the brake hose (3) at the frame. Refer to Fig 1.
- Install the brake hose banjo bolt at the caliper. Refer to Fig 1 .
- Reinstall the wheel speed sensor wire (2) to the brake hose. Refer to Fig 1 .
- Remove the support and lower the vehicle.
- Remove the prop rod from the brake pedal.
- Bleed the area of repair for the brake system, If a proper pedal is not felt during bleeding an area of repair then a base bleed system must be performed. . Refer to STANDARD PROCEDURE - BLEEDING .
