ROTOR, Brake: Removal: Rear

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

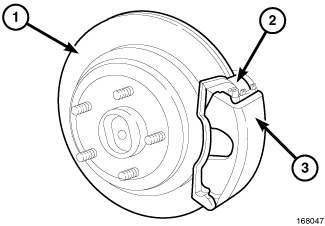

Fig 1: Rear Rotor
GC0091769Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle
  2. Remove the tire and wheel assembly.
  3. Remove the disc brake caliper (3). Refer to CALIPER, Disc Brake , Removal .
  4. Remove the caliper adapter (2) bolts. Refer to ADAPTER, Disc Brake Caliper , Removal .
  5. Remove the retaining clips and rotor assembly (1).
