Rear Dual Wheels

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

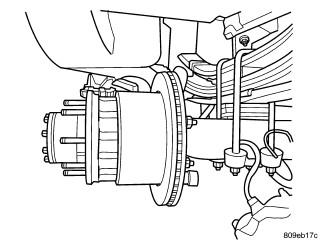

Fig 1: Identifying Hub & Rotor Assembly
GC0108017Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle
  2. Remove the tire and wheel assembly.
  3. Remove the disc brake caliper. Refer to CALIPER, Disc Brake , Removal .
  4. Remove the caliper adapter bolts.
  5. Remove the rear axle shaft from the housing on dual rear wheels. Refer to SHAFT, Axle , Removal .
    Fig 2: Identifying Hub Bolts And Socket
    GC0108018Courtesy of CHRYSLER LLC
    1 - Hub Bolts
    2 - Socket
  6. Remove the hub and rotor assembly.
  7. Disassemble the hub from the rotor if needed by removing the bolts (1).
