Front - Light Duty
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

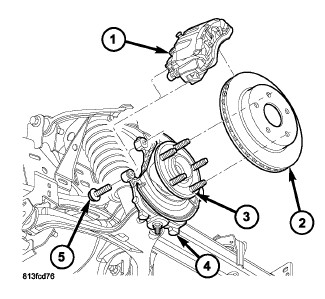

| 1 - CALIPER |
| 2 - ROTOR |
| 3 - HUB/BEARING |
| 4 - KNUCKLE |
| 5 - CALIPER ADAPTER BOLT |
- Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
- Remove the wheel and tire assembly.NOTE:
Do not allow brake hose to support caliper adapter assembly (1).
- Remove the two caliper adaptor bolts (5) from the steering knuckle (4), remove caliper adapter assembly (1), and hang aside.
- Remove the rotor (2) from the hub/bearing (3).
