Rear - Dual Wheels

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

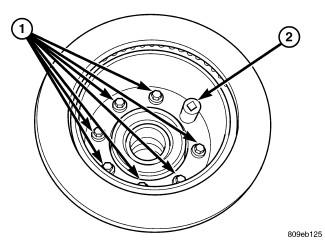

Fig 1: Identifying Hub Bolts And Socket
GC0108018Courtesy of CHRYSLER LLC
1 - Hub Bolts
2 - Socket
  1. Install the hub to the rotor. Tighten the bolts (1) to 154.5 N.m (114 ft. lbs.).

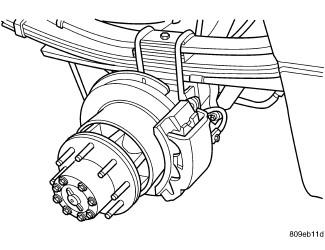

    Fig 2: Identifying Hub & Rotor Assembly
    GC0108019Courtesy of CHRYSLER LLC
  2. Install the hub and rotor assembly.
  3. Install the rear axle shaft to the housing with dual wheels, refer to appropriate Differential and Driveline/Rear Axle Installation Service Information.
  4. Install the caliper adapter bolts 328 N.m (242 ft.lbs).
  5. Install the disc brake caliper. Refer to CALIPER, Disc Brake , Installation .
  6. Install the tire and wheel assembly. Refer to Specifications .
  7. Remove the supports and lower the vehicle.
