Brake Pedal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The views in this procedure are with adjustable pedals. Without adjustable pedals are similar.

NOTE:

If equipped with adjustable pedals: When replacing the components both pedal assemblies must be in the fully down position toward the floor for proper adjustment. Pedals can be moved manually by rotating the cable on the component not being replaced. New components come in the correct position until activated.

Remove the pedal assembly. Refer to PEDAL(S), Brake and/or Accelerator , Removal .

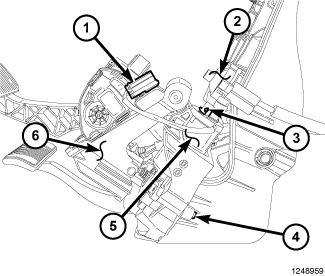

Fig 1: Adjustable Pedals System Components
Courtesy of CHRYSLER LLC

NOTE:
The adjustable pedal motor has three locking tabs (3) that prevent easy twisting when removing drive cable from housing.
If equipped with adjustable pedals, disconnect the drive cable (2) from the adjustable pedal motor (5) by twisting clockwise and lifting from motor.

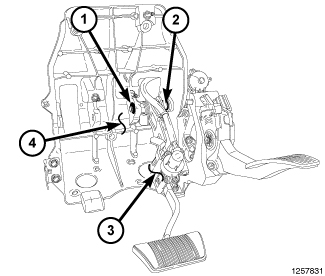

Fig 2: Identifying Pedal Components
Courtesy of CHRYSLER LLC

NOTE:
If equipped with adjustable pedals, note the spring and bushing positions during removal for proper installation.
Remove the e-clip (1) from the brake pedal pivot shaft and slide shaft (2) from the pedal assembly (4).
Remove the brake pedal (3) from the pedal assembly (4).
