PADS, Brake: Removal: Rear

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Disc Brake Caliper - Rear

Courtesy of CHRYSLER LLC

Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
Remove the rear wheel and tire assemblies.
Compress the caliper.

Remove caliper slide bolts (3).

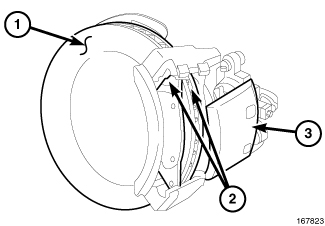

Fig 2: Rotor, Pads, Caliper - Dual Rear Wheels

Courtesy of CHRYSLER LLC

1 - Rotor

2 - Brake Shoes

3 - Disc Brake Caliper

NOTE:

Do not allow brake hose to support caliper assembly.

Remove the caliper (3), by tilting the top out and off the caliper adapter.

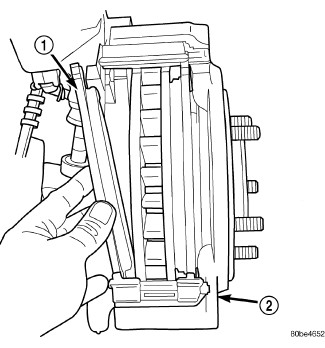

Fig 3: Inboard Brake Shoe
Courtesy of CHRYSLER LLC

1 - INBOARD SHOE

2 - CALIPER ADAPTER
Remove inboard brake shoe (1) from the caliper adapter (2).

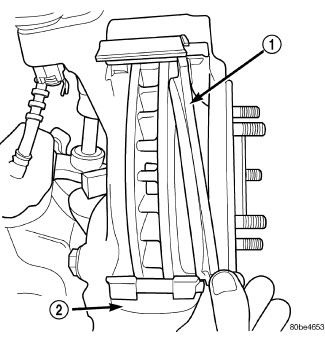

Fig 4: Outboard Brake Shoe
Courtesy of CHRYSLER LLC

1 - OUTBOARD SHOE

2 - CALIPER ADAPTER
Remove outboard brake shoe (1) from caliper adapter (2).

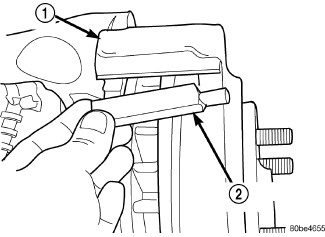

Fig 5: Top Anti-Rattle Spring
Courtesy of CHRYSLER LLC

1 - CALIPER ADAPTER

2 - ANTI-RATTLE SPRING

NOTE:
Anti-rattle springs are not interchangeable.
Remove the top anti-rattle spring (2) from the caliper adapter (1).

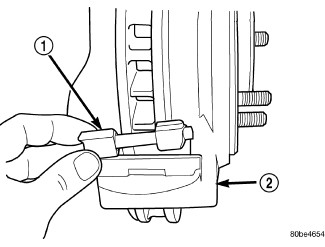

Fig 6: Bottom Anti-Rattle Spring
Courtesy of CHRYSLER LLC

1 - ANTI-RATTLE SPRING

2 - CALIPER ADAPTER
Remove the bottom anti-rattle spring (1) from the caliper adapter (2).
