PADS, Brake: Installation: Rear

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

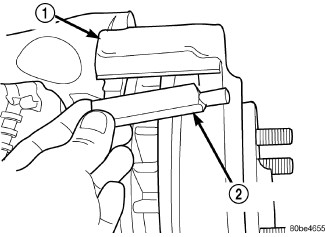

Fig 1: Top Anti-Rattle Spring

Courtesy of CHRYSLER LLC

1 - CALIPER ADAPTER

2 - ANTI-RATTLE SPRING

Clean caliper mounting adapter (1) and anti-rattle springs (2).
Lubricate anti-rattle springs with Mopar® brake grease.
NOTE:
Anti-rattle springs are not interchangeable.
Install new top anti-rattle spring (2).

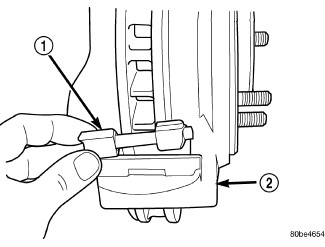

Fig 2: Bottom Anti-Rattle Spring
Courtesy of CHRYSLER LLC

1 - ANTI-RATTLE SPRING

2 - CALIPER ADAPTER
Install new bottom anti-rattle spring (1).

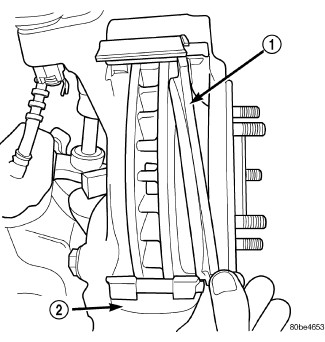

Fig 3: Inboard Brake Shoe
Courtesy of CHRYSLER LLC

1 - INBOARD SHOE

2 - CALIPER ADAPTER
Install inboard brake shoe (1) in adapter (2).

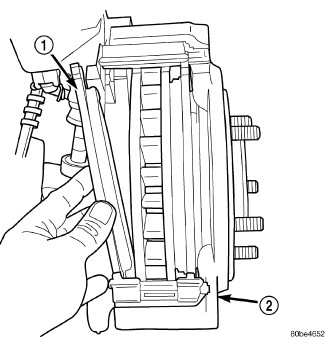

Fig 4: Outboard Brake Shoe
Courtesy of CHRYSLER LLC

1 - OUTBOARD SHOE

2 - CALIPER ADAPTER
Install outboard brake shoe (1) in adapter (2).

Fig 5: Rotor, Pads, Caliper - Dual Rear Wheels
Courtesy of CHRYSLER LLC
Tilt the bottom of the caliper (3) over rotor (1) and under adapter. Then push the top of the caliper down onto the adapter.

Fig 6: Disc Brake Caliper - Rear
Courtesy of CHRYSLER LLC
Install caliper (6). Refer to CALIPER, Disc Brake , Installation .
Install wheel and tire assemblies. Refer to Specifications .
Remove the supports and lower the vehicle.
Apply brakes several times to seat caliper pistons and brake shoes and obtain firm pedal.
Top off master cylinder fluid level.
