Front - Light Duty

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

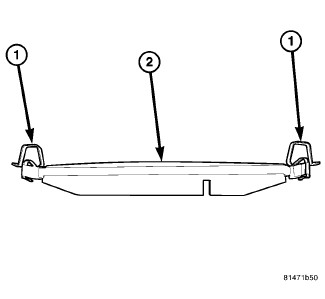

Fig 1: Identifying Brake Pad Anti-Rattle Clips
GC0083368Courtesy of CHRYSLER LLC
  1. Bottom pistons in caliper bore with C-clamp. Place an old brake shoe between a C-clamp and caliper piston.
  2. Clean caliper mounting adapter.
  3. Install new  anti-rattle clips (1) to the brake pads (2).

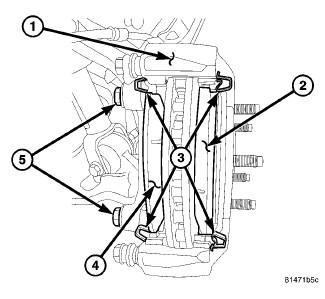

    Fig 2: Identifying Brake Pads
    GC0083367Courtesy of CHRYSLER LLC
  4. Install inboard brake pad (4) in adapter (1).
  5. Install outboard brake pad (2) in adapter (1).

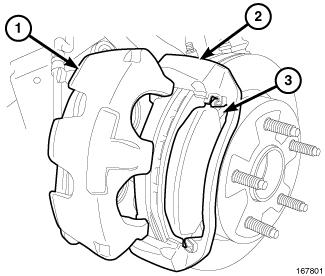

    Fig 3: Caliper Removal/Install
    GC0091565Courtesy of CHRYSLER LLC
  6. Install the caliper (1) over rotor, Then push the caliper onto the adapter (2).

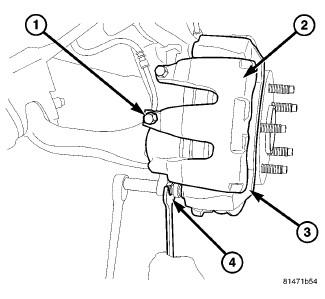

    Fig 4: Caliper Bolt
    GC0083366Courtesy of CHRYSLER LLC
  7. Install caliper slide pin bolts (4). Refer to CALIPER, Disc Brake , Installation .
  8. Install wheel and tire assemblies and lower vehicle. Refer to Specifications .
  9. Apply brakes several times to seat caliper pistons and brake shoes and obtain firm pedal.
  10. Top off master cylinder fluid level.
