All Except HYDROBOOST

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

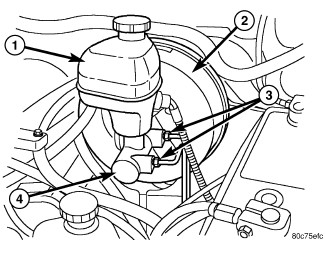

Fig 1: Removing Master Cylinder (Without Hydroboost)
GC0083385Courtesy of CHRYSLER LLC
1 - MASTER CYLINDER RESERVOIR
2 - POWER BRAKE BOOSTER
3 - BRAKE LINES
4 - MASTER CYLINDER
  1. Depress the brake pedal five times to deplete any vacuum that may remain in the booster unit.
  2. Siphon and drain the fluid from the reservoir.
  3. Disconnect the electrical connector for the low fluid level.
  4. Place a towel or rag under the master cylinder outlet port area to protect the vehicle from brake fluid damage.
  5. Remove the brake lines (3) from the master cylinder (4).
  6. Remove the mounting nuts from the master cylinder (4).
    NOTE:

    Gently ease the master cylinder and reservoir assembly away from the booster, During removal the master cylinder should be kept as perpendicular to the front of the booster as possible to avoid excess interference with the booster output rod and in order not to dislodge the output rod from its seat inside the booster.

  7. Remove the master cylinder (4).
