MASTER CYLINDER, Brake: Installation: HYDROBOOST

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

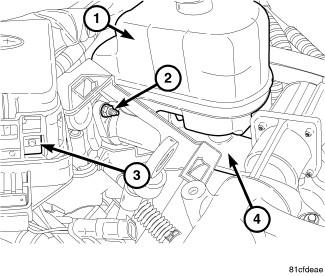

Fig 1: Identifying Wiring Box, Mounting Nut & Master Cylinder
GC0108003Courtesy of CHRYSLER LLC
NOTE:

If master cylinder is replaced bleed cylinder before installation.

  1. Install the master cylinder (4) on the booster mounting studs.
  2. Install a new upper mounting nut (2) and tighten to 25 N.m (221 in. lbs.).
  3. Reinstall the wiring box (3) back into position and reclip.

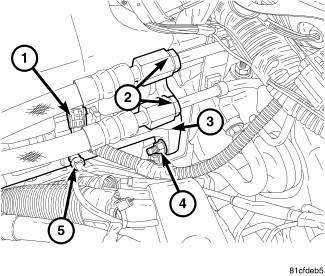

    Fig 2: Identifying Nut, Electrical Connector, Brake Lines & Master Cylinder
    GC0108000Courtesy of CHRYSLER LLC
  4. Install a new lower mounting nut (4) and tighten to 25 N.m (221 in. lbs.).
  5. Install the brake lines (5) and tighten to 19 N.m (170 in. lbs.)
  6. Reconnect the electrical connector (1) for the low fluid level switch.
  7. Fill and bleed the base brake system. Refer to STANDARD PROCEDURE - BLEEDING  .
