Front Junction Block

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a prop rod on the brake pedal to keep pressure on the brake system. Holding pedal in this position will isolate the master cylinder from the hydraulic brake system and will not allow brake fluid to drain out of the brake fluid reservoir while the brake lines are open. This will allow you to bleed out the area of repair instead of the entire system.

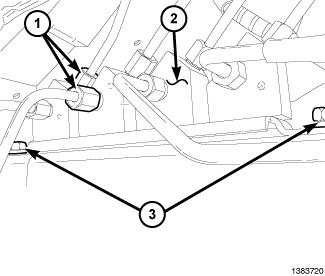

    Fig 1: Locating Junction Block
    GC0087329Courtesy of CHRYSLER LLC
  2. Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
  3. Remove the eight brake lines (1) from the junction block (2).
  4. Remove the junction block mounting bolts (3) and remove the junction block (2) from the frame.
