Rear Junction Block

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

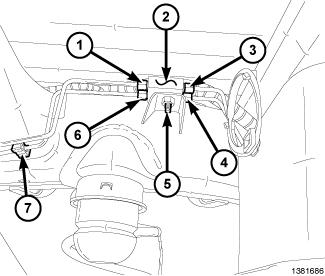

Fig 1: Locating Rear Junction Block
GC0087330Courtesy of CHRYSLER LLC
  1. Position the junction block (2) on the frame.
  2. Install the junction block mounting bolt (5) and tighten to 24 N.m (18 ft. lbs.).
  3. Install the brake lines (1, 3, 4, 6) into the junction block (2) and tighten to 19 N.m (169 in. lbs.).
  4. Remove the supports and lower the vehicle.
  5. Remove the prop rod and bleed the base brake system. Refer to STANDARD PROCEDURE - BLEEDING  .
