BRACKET, Caliper Mounting: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

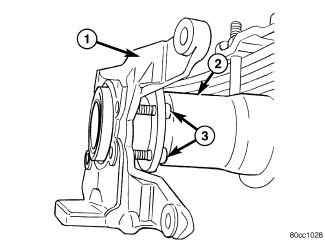

Leaf spring system shown in illustration, coil spring system similar.
| 1 - CALIPER ADAPTER MOUNT |
| 2 - AXLE TUBE |
| 3 - MOUNTING STUDS |
- Install the caliper adapter mount (1) on the axle housing (2).
- Install support plate on axle flange. Tighten attaching nuts (3) to 102 N.m (75 ft. lbs.).
- Install parking brake cable in the brake lever.
- Install the park brake shoes. Refer to SHOES, Parking Brake , Installation .
- Install axle shaft, refer appropriate Differential and Driveline/Rear Axle - Installation Service Information.
- Adjust brake shoes to drum with brake gauge. Refer to SHOES, Parking Brake , Adjustments .
- Install the rotor. Refer to ROTOR, Brake , Installation .
- Install the caliper adapter. Refer to ADAPTER, Disc Brake Caliper , Installation .
- Install the caliper. Refer to CALIPER, Disc Brake , Installation .
- Install wheel and tire assembly. Refer to Wheels , Standard Procedure .
