Section 397 (68RFE Automatic Transmission (Service Information) 2500 Hd & 3500 Hd): Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Checking Converter Seating With Steel Scale And Straightedge
GC0109110Courtesy of CHRYSLER GROUP, LLC
1 - SCALE
2 - STRAIGHTEDGE
  1. Check torque converter hub and hub drive flats for sharp edges burrs, scratches, or nicks. Polish the hub and flats with 800/1000 grit paper and crocus cloth if necessary. Verify that the converter hub o-ring is properly installed and is free of any debris. The hub must be smooth to avoid damaging pump seal at installation.
  2. If a replacement transmission is being installed, transfer any components necessary, such as the manual shift lever and shift cable bracket, from the original transmission onto the replacement transmission.
  3. Lubricate oil pump seal lip with transmission fluid.
  4. Align converter and oil pump.
  5. Carefully insert converter in oil pump. Then rotate converter back and forth until fully seated in pump gears.
  6. Check converter seating with steel scale and straightedge. Surface of converter lugs should be in front of the bell housing face about 25 mm, (1 in.).
  7. Temporarily secure converter with C-clamp.
    Fig 2: Identifying Transmission & Engine
    GC0109086Courtesy of CHRYSLER GROUP, LLC
    1 - ENGINE
    2 - TRANSMISSION
  8. Position transmission on jack and secure it with chains.
  9. Check condition of converter driveplate. Replace the plate if cracked, distorted or damaged. Also be sure transmission dowel pins are seated in engine block and protrude far enough to hold transmission in alignment.
  10. Apply a light coating of Mopar® High Temp Grease to the torque converter hub pocket in the rear pocket of the engine's crankshaft.
  11. Raise transmission (2) and align the torque converter with the drive plate and transmission converter housing with the engine block.
  12. Move transmission forward. Then raise, lower or tilt transmission to align the converter housing with engine block dowels while positioning filler tube into the filler tube bore.
  13. Carefully work transmission forward and over engine block dowels until converter hub is seated in crankshaft. Verify that no wires, or the transmission vent hose, have become trapped between the engine block and the transmission.
  14. Install two bolts to attach the transmission to the engine.
  15. Install remaining torque converter housing to engine bolts. Tighten to 68 N.m (50 ft. lbs.).
  16. Install transfer case, if equipped. Tighten transfer case nuts to 35 N.m (26 ft. lbs.).
  17. Install rear support to transmission. Tighten bolts specification. Refer to appropriate Engine Service Information article .
  18. Lower transmission onto crossmember and install nuts attaching transmission mount to crossmember. Tighten bolts specification. Refer to appropriate Engine Service Information article .
  19. Remove engine support fixture.
  20. Install the transmission inspection cover. Tighten the bolts to 10 N.m (88 in. lbs.)
  21. Install the power bending bracket.
    Fig 3: Dust Shield
    GC0109078Courtesy of CHRYSLER GROUP, LLC
  22. Install the transmission dust shield.

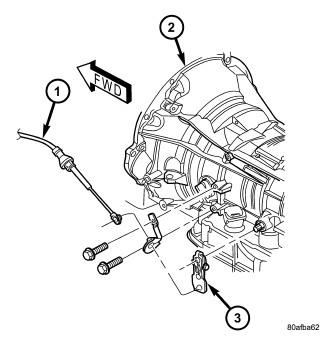

    Fig 4: Gearshift Cable & Transmission Manual Valve Lever
    GC0109084Courtesy of CHRYSLER GROUP, LLC
    1 - GEARSHIFT CABLE
    2 - RFE TRANSMISSION
    3 - MANUAL LEVER
  23. Connect gearshift cable to transmission.

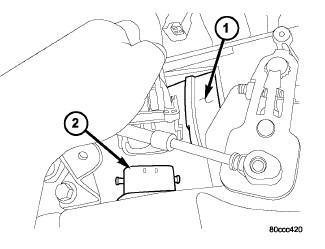

    Fig 5: Transmission Solenoid/TRS Assembly
    GC0109081Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION
    2 - TRANSMISSION SOLENOID/TRS ASSEMBLY
  24. Connect wires to solenoid and pressure switch assembly (2) connector.

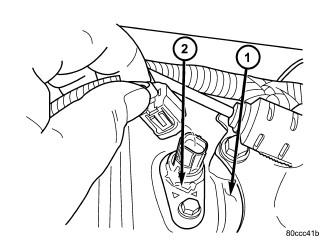

    Fig 6: Input Speed Sensor
    GC0109080Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION
    2 - INPUT SPEED SENSOR
  25. Connect wires to input speed sensor (2).

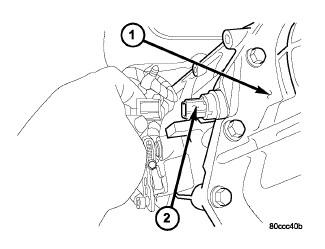

    Fig 7: Output Speed Sensor
    GC0109079Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION
    2 - OUTPUT SPEED SENSOR
  26. Connect wires to output speed sensor (2).

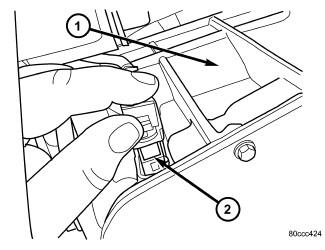

    Fig 8: Line Pressure Sensor
    GC0109082Courtesy of CHRYSLER GROUP, LLC
    1 - TRANSMISSION
    2 - LINE PRESSURE SENSOR
  27. Connect wires to line pressure sensor (2). Be sure transmission harnesses are properly routed.
    Fig 9: Differential Pressure Sensor
    GC0109083Courtesy of CHRYSLER GROUP, LLC
    1 - BOLT
  28. Install the differential pressure sensor bolt (if equipped). Tighten bolt to 10 N.m (88 in. lbs.).
    Fig 10: Torque Converter Bolts
    GC0108442Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    It is essential that the correct length bolts are used to attach the converter to the flexplate. Bolts that are too long will damage the clutch surface inside the torque converter.

  29. Install torque converter-to-driveplate bolts. Tighten bolts to 88 N.m (65 ft. lbs.).
  30. Connect cooler lines to transmission.

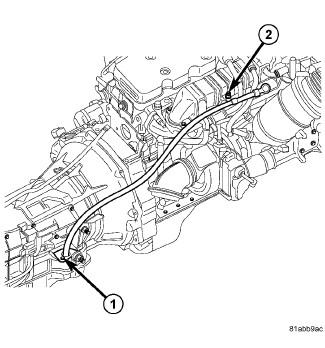

    Fig 11: 68RFE Fill Tube, Bolt & Nut
    GC0109085Courtesy of CHRYSLER GROUP, LLC
    1 - FILL TUBE BOLT
    2 - FILL TUBE NUT
  31. Install transmission fill tube bolt (1). Tighten bolt to 10 N.m (88 in. lbs.)
  32. Install exhaust components, if necessary.
  33. Align and connect propeller shaft(s).
  34. Adjust gearshift cable if necessary.
  35. Install any skid plates removed previously. Refer to PLATE, SKID, FRONT, INSTALLATION and PLATE, SKID, TRANSFER CASE, INSTALLATION .
  36. Lower vehicle.
  37. Fill transmission with Mopar® ATF +4, Automatic Transmission Fluid.
