Section 397 (68RFE Automatic Transmission (Service Information) 2500 Hd & 3500 Hd): Clutch: Disassembly: Disassembly

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 68RFE Clutch Orientation

Courtesy of CHRYSLER GROUP, LLC

1 - U/D CLUTCH

4 - 4C CLUTCH

2 - O/D CLUTCH

5 - 2C CLUTCH

3 - REVERSE CLUTCH

6 - L/R CLUTCH

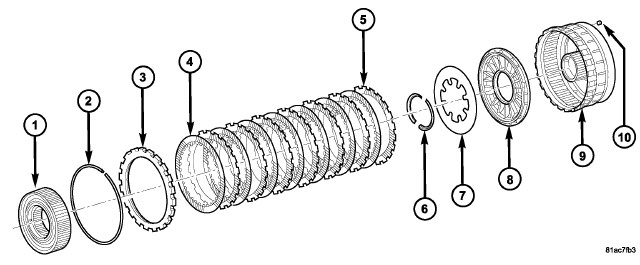

Fig 2: Low/Reverse Clutch

Courtesy of CHRYSLER GROUP, LLC

1 - OVERRUNNING CLUTCH

8 - PISTON

2 - SNAP RING (SELECTIVE)

9 - L/R CLUTCH RETAINER

3 - REACTION PLATE

10 - BLEED ORIFICE

4 - DISC

5 - PLATE

6 - RETAINER

7 - BELLEVILLE SPRING

Remove the low/reverse reaction plate flat snap-ring (2).
Remove the reaction plate (3).
Remove the low/reverse clutch (4, 5) and the overrunning clutch (1) from the low/reverse clutch retainer (9).

Separate the low/reverse clutch (4, 5) from the overrunning clutch (1).

NOTE:

The ORC is no longer serviced, it is sold as an assembly only. Be certain that the outer race will rotate in one direction but not both relative to the inner race

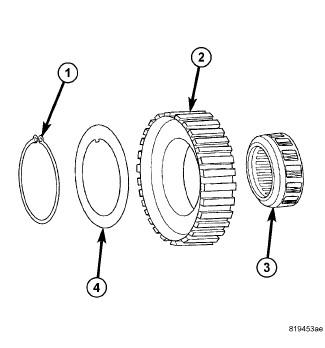

Fig 3: 68RFE Overrunning Clutch

Courtesy of CHRYSLER GROUP, LLC

1 - SNAP-RING

2 - OUTER RACE

3 - OVERRUNNING CLUTCH

4 - SPACER

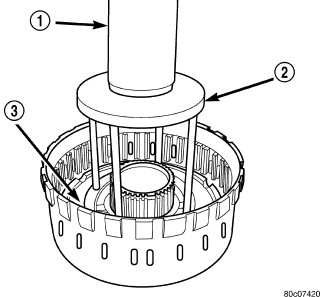

Fig 4: Compress Low/Reverse Belleville Spring Using Tool 8285

Courtesy of CHRYSLER GROUP, LLC

1 - PRESS

2 - TOOL 8285

3 - BELLEVILLE SPRING

Using Spring Compressor (special tool #8285, Compressor, Spring) (2) and a suitable shop press (1), compress the low/reverse Belleville spring (3) and remove the split retaining ring holding the Belleville spring into the low/reverse clutch retainer.
Remove the low/reverse Belleville spring (3) and piston from the low/reverse clutch retainer. Use 20 psi of air pressure to remove the piston if necessary.
