Sensor, Fuel Rail: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

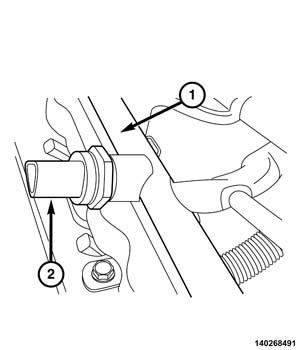

Fig 1: CNG Fuel Rail & Fuel Rail Sensor
GC0155462Courtesy of CHRYSLER GROUP, LLC
  1. Install the fuel rail sensor (2).
  2. Connect the electrical connector.
  3. Connect the battery negative cable.
