Tank, Fuel: Installation: Installation
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- If fuel pump module installation is necessary Refer to MODULE, FUEL PUMP, INSTALLATION .
- Secure the fuel tank onto a suitable hydraulic jack with a fuel tank adapter.
- Raise and position the fuel tank leaving room to make the connections at the top of the fuel tank.

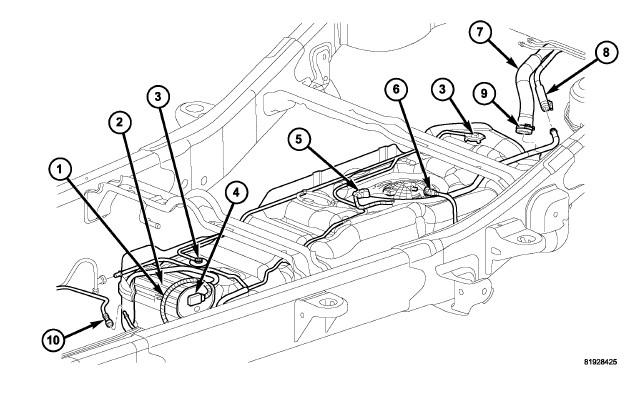

- Connect the fuel supply line (6) to the fuel pump module.
- Connect the electrical connector (5) to the fuel pump module.

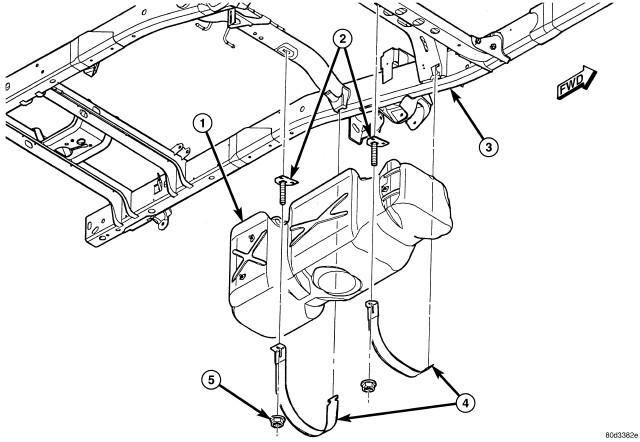

- Raise the fuel tank (1) until snug to the body.
- Install the fuel tank straps (4).
- Install the strap nuts (5) and tighten to 41 N.m (30 ft. lbs.).
- Remove the hydraulic jack.
- Connect the electrical connector to the ESIM switch (4).
- Connect the quick-connect fitting at the front of the fuel tank (10).
- Connect the quick-connect fitting (8) at the rear of the fuel tank.
- Connect the fill hose (7) at the rear of the fuel tank and securely tighten the fill hose retaining clamp (9).
- Connect the fuel line quick-connect fitting at the fuel rail (1).
- Connect the negative battery cable (1).
- Fill the fuel tank.
- Start the engine and check for leaks at all fuel tank connections.
