Sensor, Water In Fuel: Removal: Secondary
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC
- Disconnect both negative battery cables.
- Position a drain pan under fuel filter and open fuel drain valve and drain fuel.
- Disconnect the Water In Fuel (WIF) sensor harness connector.

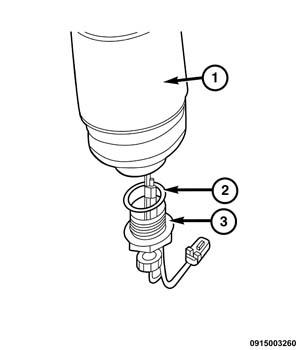

- Remove the WIF sensor (3).
