Sensor, Fuel Pressure: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Cover, Bolts & Oil Dipstick
GC0155408Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect both negative battery cables.
  2. Remove the oil dipstick (3).
  3. Remove the engine cover (2) and fasteners (1, 4).
    Fig 2: Bulk Head Connector
    GC0155445Courtesy of CHRYSLER GROUP, LLC
  4. Cut the cable tie and position aside the bulk head connector (1).
  5. If equipped, remove the transmission dipstick (3).
    Fig 3: EGR Bypass Valve Harness Connector & Exhaust Pressure Sensor Wire Harness Connector
    GC0155426Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the exhaust pressure sensor wire harness connector (2).
  7. Disconnect the EGR cooler bypass valve wire harness connector (1).
    Fig 4: Crankcase Pressure Sensor Wire Harness Connector & Clamp
    GC0155113Courtesy of CHRYSLER GROUP, LLC
  8. Disconnect the crankcase pressure sensor 2 wire harness connector (1).
    Fig 5: Identifying Crankcase Pressure Sensor And Components
    GC0110278Courtesy of CHRYSLER GROUP, LLC
  9. Disconnect crankcase pressure sensor 1 wire harness connectors (7).
    Fig 6: Injector Harness Connectors
    GC0155340Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect both fuel injector harness connectors (1).
    Fig 7: Oil Drain Hose
    GC0157560Courtesy of CHRYSLER GROUP, LLC
  11. Remove the CCV oil drains hoses (3) from cylinder head cover.
    Fig 8: Fuel Tube Silencer
    GC0157561Courtesy of CHRYSLER GROUP, LLC
  12. Remove the fuel tube silencer (1).

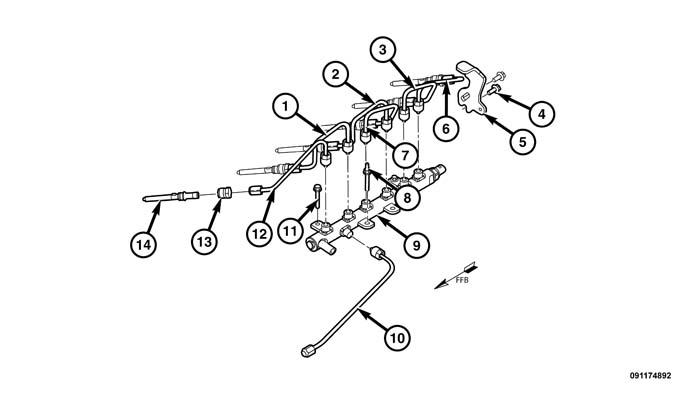

    Fig 9: Removing/Installing Fuel Line Shield, High Pressure Fuel Lines, HPC Connector Tube, Fuel Injectors & Bolts
    GC0155209Courtesy of CHRYSLER GROUP, LLC
  13. Remove two bolts (4) and No. 6 fuel tube shield (5) at rear of cylinder head.
  14. Remove bolts and the rear engine lift bracket.
  15. Remove cylinder No. 5 and No. 6 fuel lines (3 and 6).

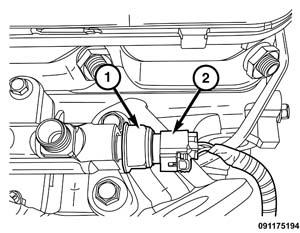

    Fig 10: Fuel Pressure Sensor & Harness Connector
    GC0155293Courtesy of CHRYSLER GROUP, LLC
  16. Disconnect the fuel pressure sensor wire harness connector (2).
  17. Remove fuel pressure sensor (1).
