Pump, Fuel Injection: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Cleanliness cannot be overemphasized when handling or replacing diesel fuel system components. This especially includes the fuel injectors, high-pressure fuel lines and fuel injection pump. Very tight tolerances are used with these parts. Dirt contamination could cause rapid part wear and possible plugging of fuel injector nozzle tip holes. This in turn could lead to possible engine misfire. Always wash/clean any fuel system component thoroughly before disassembly and then air dry. Cap or cover any open part after disassembly. Before assembly, examine each part for dirt, grease or other contaminants and clean if necessary. When installing new parts, lubricate them with clean engine oil or clean diesel fuel only.

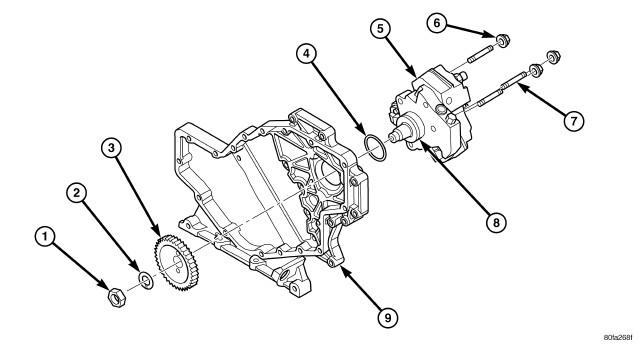

Fig 1: Fuel Injection Pump & Mounting Components

Courtesy of CHRYSLER GROUP, LLC

Inspect pump mounting surfaces at pump and mounting flange and pilot bore for nicks, cuts or damage. Inspect O-ring surfaces for nicks, cuts or damage.
Clean injection pump mounting flange and pilot bore at gear housing. Also clean front of injection pump.
Install new rubber O-ring (square) (4) into machined groove at pump mounting area.
Apply clean engine oil to injection pump O-ring and pilot bore only.
The machined tapers on both injection pump shaft and injection pump gear must be absolutely dry, clean and free of any dirt or oil film. This will ensure proper gear-to-shaft tightening.
Clean pump gear and pump shaft at machined tapers with an evaporative type cleaner such as brake cleaner.

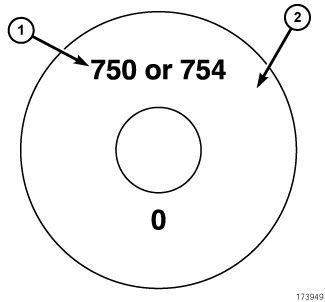

Fig 2: Injection Pump Shaft Phasing Marks
Courtesy of CHRYSLER GROUP, LLC
FUEL INJECTION PUMP PHASING: Perform the following phasing procedure anytime the injection pump has been removed and reinstalled:
Locate the end of the fuel injection pump shaft (2). Two numbers (750 or 754 and 0) are stamped into the end of the shaft.

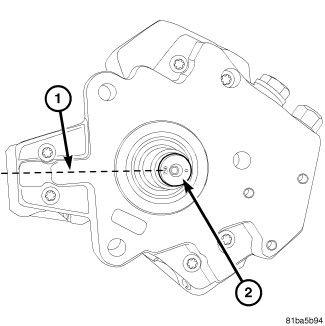

Fig 3: Injection Pump Shaft Position
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Fuel Injection Pump used for illustration has number 750.
Rotate the injection pump shaft until the number 5 (located in the center of number 750 or 754) is positioned at 9 o'clock (1).
Position injection pump to mounting flange on gear housing while aligning injection pump shaft through back of injection pump gear. Be sure the number 5 is still at the 9 o'clock position (1).
Bring the engine to TDC position. Do this by rotating the crankshaft until the TDC mark on the crankshaft damper is at 12 o'clock position. It does not matter if cylinder No. 1 or No. 6 is at TDC. Again, check to be sure the number 5 is still at the 9 o'clock position (1). Rotate pump shaft accordingly.

Fig 4: Fuel Injection Pump & Mounting Components
Courtesy of CHRYSLER GROUP, LLC
After pump is positioned flat to mounting flange, install three pump mounting nuts (6) and tighten finger tight only. Do not attempt a final tightening at this time. Do not attempt to tighten (pull) pump to gear housing using mounting nuts. Damage to pump or gear housing may occur. The pump must be positioned flat to its mounting flange before attempting to tighten three mounting nuts.
To prevent damage or cracking of components, install and tighten nuts in the following sequence:
1. Install fuel injection pump shaft washer and nut to pump shaft. Tighten nut finger tight only.
2. Do preliminary (light) tightening of fuel injection pump shaft nut (1).
3. Tighten three fuel injection pump mounting nuts to 24 N.m (18 ft. lbs.).
4. Do a final tightening of fuel injection pump shaft nut (1) to 105 N.m (77 ft. lbs.).

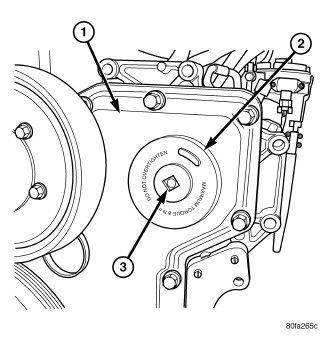

Fig 5: Pump Drive Gear Access Cover
Courtesy of CHRYSLER GROUP, LLC
Install drive gear access cover (2) using a 3/8" drive ratchet. Access cover is threaded to timing gear cover. Tighten to 8 N.m (71 in. lbs.).

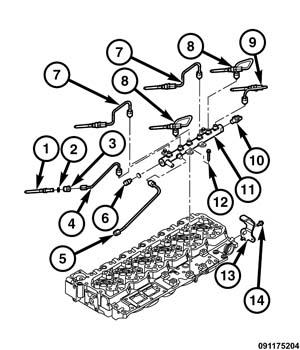

Fig 6: Fuel Rail Components
Courtesy of CHRYSLER GROUP, LLC
Install the high-pressure pump-to-fuel rail fuel tube (5) and tighten union nuts to 40 N.m (30 ft. lbs.).

Fig 7: Fuel Injection Pump Components - Rear View
Courtesy of CHRYSLER GROUP, LLC
Install fuel return line. Tighten banjo bolt (2) to 24 N.m (18 ft. lbs.).
Install quick-connect fitting (4).
Install clamp (5).
Connect Fuel Control Actuator (FCA) wire harness connector (6) to rear of injection pump.

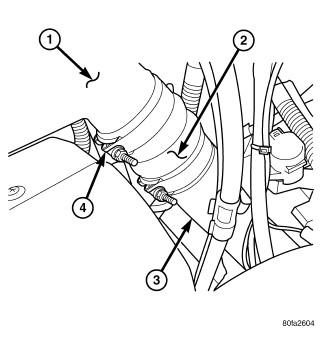

Fig 8: Intake Tube & Connecting Hose
Courtesy of CHRYSLER GROUP, LLC
Install accessory drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the Charge Air Cooler (CAC) tube (3) Tighten clamps (4) to 14 N.m (124 in. lbs.).

Fig 9: CCV Tube, Crankcase Pressure Sensor Connector, CCV Oil Drains & Close Crankcase Ventilation (CCV) Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the fuel tube silencer.
Install the CCV oil drains hoses (3) to the cylinder head cover.

Fig 10: Injector Harness Connectors
Courtesy of CHRYSLER GROUP, LLC
Disconnect both fuel injector wire harness connectors (1).

Fig 11: Identifying Crankcase Pressure Sensor And Components
Courtesy of CHRYSLER GROUP, LLC
Connect the crankcase pressure sensor 1 wire harness connectors (7).

Fig 12: Crankcase Pressure Sensor Wire Harness Connector & Clamp
Courtesy of CHRYSLER GROUP, LLC
Connect the crankcase pressure sensor 2 wire harness connector (1).

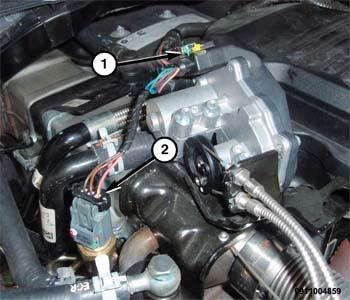

Fig 13: EGR Bypass Valve Harness Connector & Exhaust Pressure Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the EGR cooler bypass valve wire harness connector (1).
Connect the exhaust pressure sensor wire harness connector (2).

Fig 14: Bulk Head Connector
Courtesy of CHRYSLER GROUP, LLC
Position the bulk head connector (1) and install a new cable tie to secure connector.

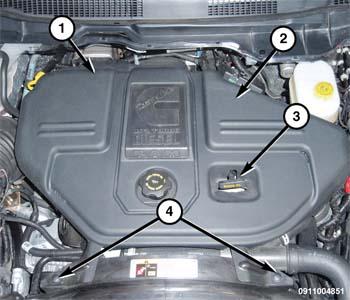

Fig 15: Engine Cover, Bolts & Oil Dipstick
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (2) and fasteners (1, 4).
Install the oil dipstick (3).
Connect both negative battery cables.
Check system for fuel or engine oil leaks.
