Module, Fuel Pump: Installation: Installation

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

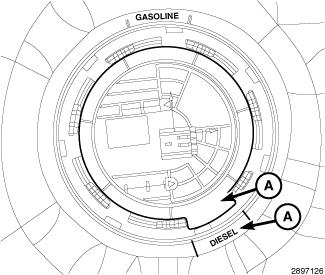

Fig 1: Aligning Locator Tab With Index Mark

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Whenever the fuel pump module is serviced, the rubber O-ring seal must be replaced.

Using a new O-ring seal (gasket), position fuel pump module into opening in fuel tank and align the locator tab (A) with index mark (A) on fuel tank.

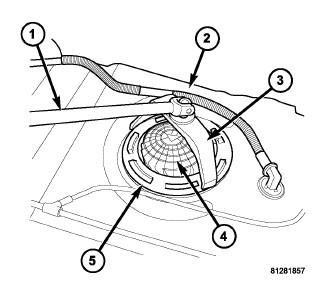

Fig 2: Using Fuel Pump Lock Ring Wrench 9340 To Remove or Install Fuel Pump Module
Courtesy of CHRYSLER GROUP, LLC
Position lock ring (5) over top of fuel pump module.
Rotate module until embossed alignment arrow points to center alignment mark. This step must be performed to prevent float from contacting side of fuel tank. Also be sure fuel fitting on top of pump module is pointed to drivers side of vehicle.
Install SAE Fuel Pump Lock Ring Wrench (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (3) to lock ring.
Install 1/2 inch drive breaker (1) into SAE Fuel Pump Lock Ring Wrench (special tool #9340, SAE Fuel Pump Lock Ring Wrench) (3).
Tighten lock ring (clockwise) until all seven notches have engaged.
Install fuel tank. Refer to TANK, FUEL, INSTALLATION .
