Center Floor Console

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

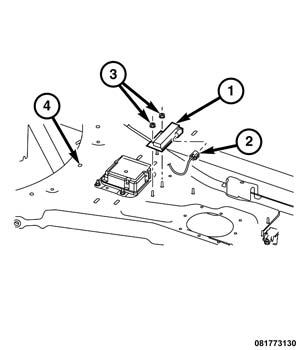

Fig 1: Removing/Installing Antenna
GC0154620Courtesy of CHRYSLER GROUP, LLC
  1. Position the antenna to the console for installation.
  2. Install the two screws (3) that secure the antenna in place.
  3. Reconnect the wire harness connector from the connector receptacle (2) for the Low Frequency Antenna (LF).
  4. Install the center floor console to the vehicle.
  5. Reconnect the battery cable to the negative battery post.
