Switch, Lumbar Control: Description: Description
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

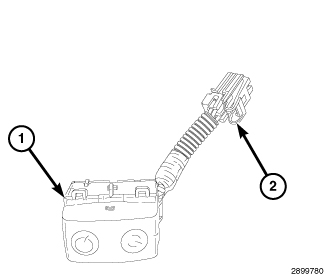

The power lumbar support can be adjusted inward and outward for added driver comfort using the lumbar control switch (1), located on the outboard seat cushion side trim panel.
CAUTION:
The electrical connector for the lumbar control switch must be disconnected prior to removing the power seat switch bezel from the seat cushion side trim panel. Failure to follow these instructions can result in damage to the lumbar control switch.
The lumbar control switch has a wire lead and electrical connector (2) attached to it. The electrical connector must be disconnected, prior to removing the seat switch bezel from the seat cushion side trim panel.
