Motor, Seat Adjuster: Removal: Removal: Notes
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

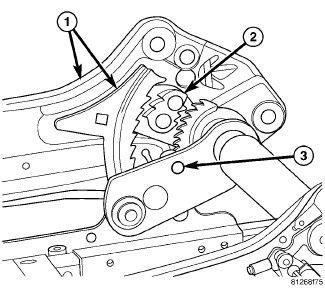

A seat structure that has seen significant load may have the locking mechanism activated and may exhibit the following symptoms:
- Locking pawl (2) loose
- Locking pawl (2) engaged into the seat frame sidemember (1)
- Height adjuster only works on outboard side
- Broken or missing shear pin (3)
If any of above symptoms exist, replace the height adjuster assembly. Do not attempt any repairs. Failure to follow these instructions may result in possible serious or fatal injury.
