Bumper, Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

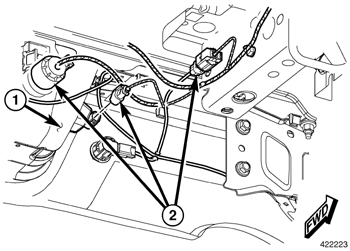

Fig 1: Rear Bumper Electrical Connectors
GC0088222Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the electrical connectors (2).

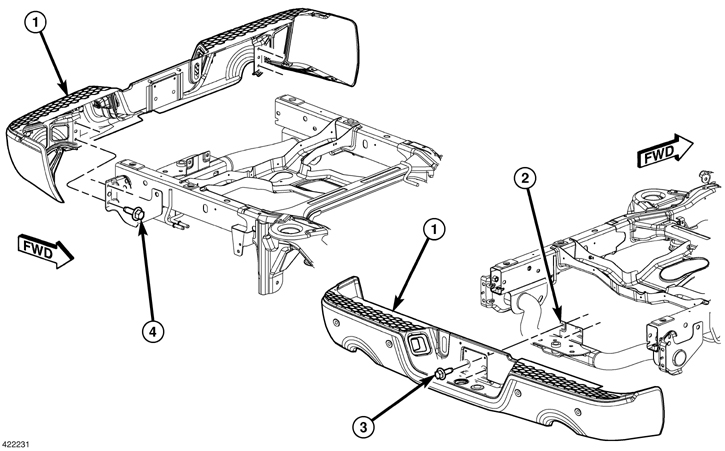

    Fig 2: Rear Bumper, Trailer Hitch & Bolts
    GC0088223Courtesy of CHRYSLER GROUP, LLC
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the license plate.
  4. Remove the bolts behind the plate (3).
  5. Support the bumper with a suitable lifting device.
  6. Remove the bolts attaching the bumper support brackets (4) to the trailer hitch (2).
