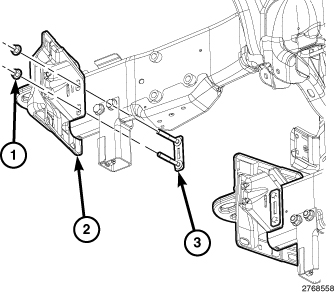

Fig 1: Identifying Bumper Brackets With Bolts & Nuts

Courtesy of CHRYSLER GROUP, LLC

Install the bumper brackets (2) and install the bolts (3) and nuts (1). Do not tighten the nuts at this time.

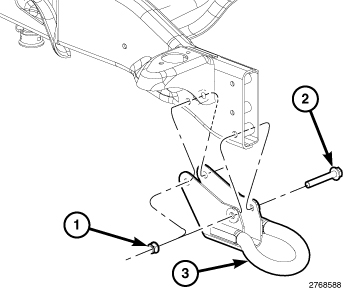

Fig 2: Identifying Tow Hooks With Nuts & Bolts
Courtesy of CHRYSLER GROUP, LLC
If equipped, install the tow hooks (3) and install the bolts (2) and nuts (1).
Tighten the nuts to 275 N.m (203 ft. lbs.).

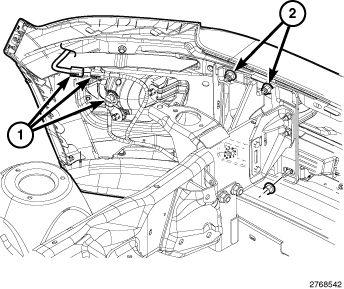

Fig 3: Identifying Front Bumper Electrical Connectors & Nuts
Courtesy of CHRYSLER GROUP, LLC
Position the bumper onto the frame tip brackets and install the eight nuts (2).
Connect the electrical connectors (1), if equipped.

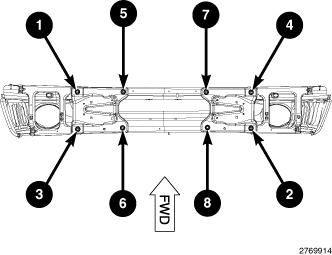

Fig 4: Identifying Front Bumper Nut Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Tighten the eight bumper nuts using the sequence shown in illustration, to 95 N.m (70 ft. lbs.).

Fig 5: Identifying Bumper Brackets With Bolts & Nuts
Courtesy of CHRYSLER GROUP, LLC
Check and adjust the bumper alignment as necessary. Refer to GAP AND FLUSH, SPECIFICATIONS .
Tighten the nuts (1) to 95 N.m (70 ft. lbs.).
If necessary, install the charge air cooler, according to the service information.
Install the grille. Refer to GRILLE, INSTALLATION .
