Sensor, Camshaft Position: Installation: 6.7L

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the O-ring seal (2) with clean engine oil.

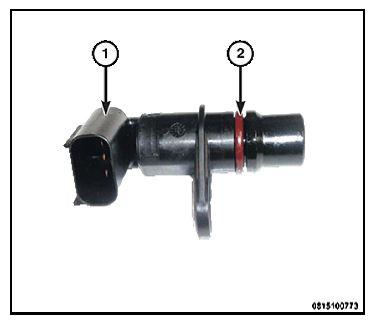

    Fig 1: CMP Sensor O-ring seal - 6.7L
    G00590346Courtesy of CHRYSLER GROUP, LLC
  2. Install the Camshaft Position (CMP) sensor (2) and tighten the bolt (1) to 12 N.m (9 ft. lbs.).

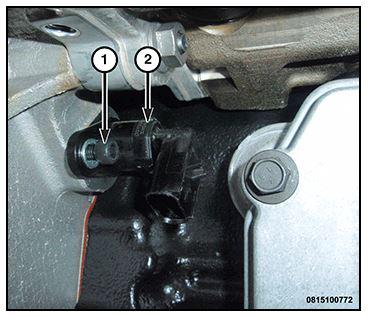

    Fig 2: CMP Sensor Removal/Installation - 6.7L
    G00590345Courtesy of CHRYSLER GROUP, LLC
  3. Connect the CMP sensor wire harness connector (1).

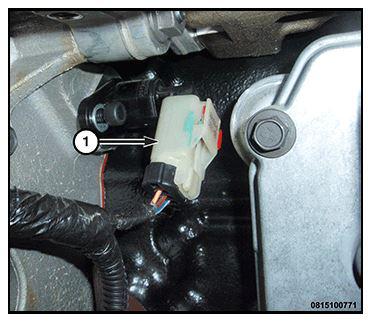

    Fig 3: Camshaft Position (CMP) connector - 6.7L
    G00590344Courtesy of CHRYSLER GROUP, LLC
  4. Install the left front wheelhouse splash shield (Refer to SHIELD, SPLASH, FRONT WHEELHOUSE ) .
  5. Connect both of the negative battery cables.
