6.7L Diesel

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

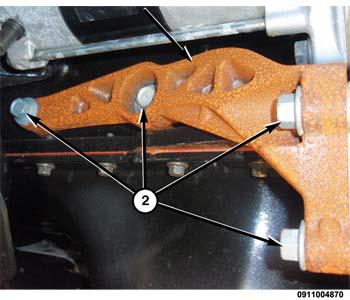

Fig 1: Left Engine Block Stiffener & Bolts
GC0154599Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate both negative battery cables.
  2. Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. If equipped, remove bolts (2) and the left engine block stiffener (1).
    Fig 2: Starter 6.7L Diesel
    GC0108135Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect solenoid wire harness connector (3).
  5. Remove the B+ cable (1) dust cover.
  6. Remove nut (2) and the B+ cable (1) from stud.
  7. Remove three bolts (4) and starter motor from engine.
