Camera, Rear: Removal: Removal

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

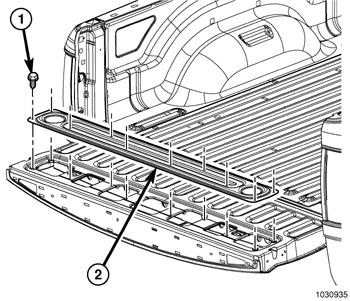

Fig 1: Tailgate Cover

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable.
Open the tailgate.
Remove the tailgate cover. Refer to COVER, TAILGATE, REMOVAL .

Fig 2: Tailgate Release Handle & Actuator Rods
Courtesy of CHRYSLER GROUP, LLC
Disconnect the rear camera electrical harness.
Remove the tailgate release handle. Refer to HANDLE, LATCH RELEASE, REMOVAL .
Remove the rear camera from the tailgate handle.
