6.7L Diesel-Dual

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

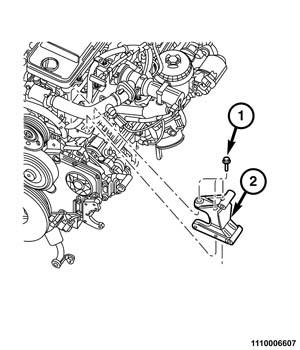

Fig 1: Generator Mounting Bracket & Bolt

Courtesy of CHRYSLER GROUP, LLC

If removed, install the generator mounting bracket (2). Tighten bolts (1) 60 N.m (44 ft. lbs.).

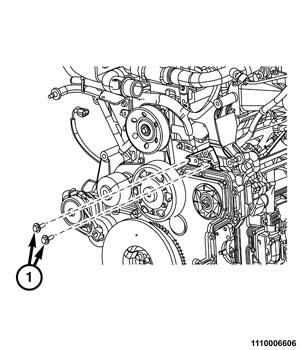

Fig 2: Lower Generator Mounting Bracket Bolts
Courtesy of CHRYSLER GROUP, LLC
If removed, install the lower generator mounting bracket bolts (1) and tighten to 33 N.m (24 ft. lbs.).

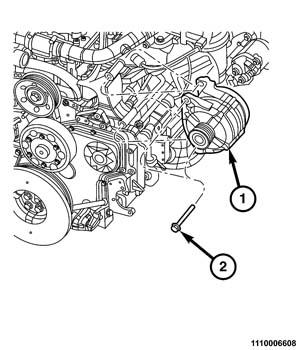

Fig 3: Generator & Bolt
Courtesy of CHRYSLER GROUP, LLC
Install the generator (1). Tighten bolts (2) to 65 N.m (48 ft. lbs.).
Install B+ terminal eyelet to generator output stud. Tighten nut to 15 N.m (133 in. lbs.).
Snap the plastic insulator cap (1) onto B+ output terminal.
Connect the field wire connector (1) into the generator.
CAUTION:
Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

CAUTION:
When installing a serpentine accessory drive belt, the belt must be routed correctly. The water pump may be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or Refer to the Belt Schematics in ENGINE COOLING SYSTEM - 2500 HD & 3500 HD .
Install the serpentine drive belt. Refer to BELT, SERPENTINE, INSTALLATION .
Install the engine cover and fasteners.
Install the engine oil dipstick.
Install both negative battery cables.
