Diesel-Left Side
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

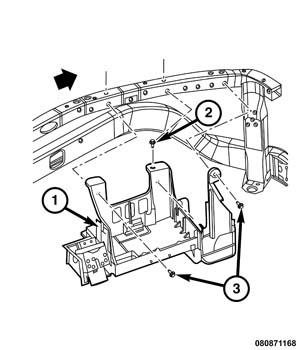

- Install the battery tray assembly (1). Tighten bolts (2, 3) to 32 N.m (24 ft. lbs.).

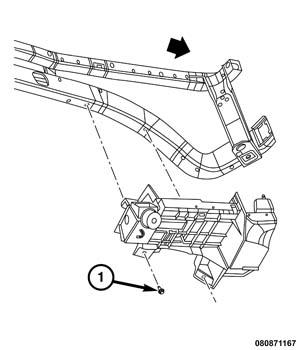

- Install the two lower battery tray bolts and tighten to 32 N.m (24 ft. lbs.).
- Install the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
- Connect the wire harness retainers to the battery tray assembly.
- Install the Power Distribution Center (PDC).
- Install the battery. Refer to BATTERY, INSTALLATION .
