Left Side Negative

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

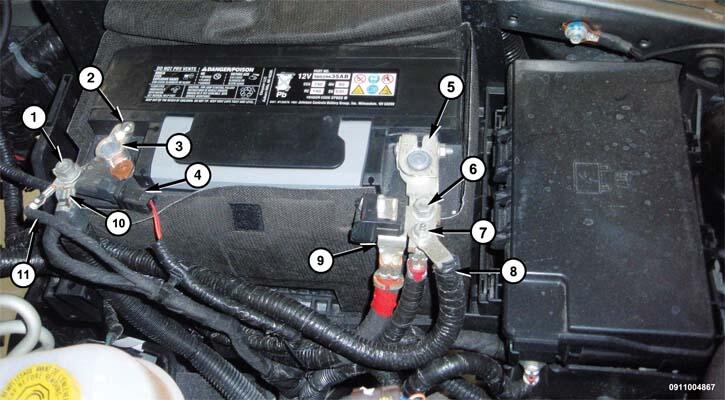

Fig 1: Battery Cables & Components
GC0155269Courtesy of CHRYSLER GROUP, LLC
  1. Remove nut (1) and the negative battery cables (10, 11).
  2. Disconnect the battery negative cable terminal clamp (3).
  3. Remove the bolt securing the negative cable to the left front fender.

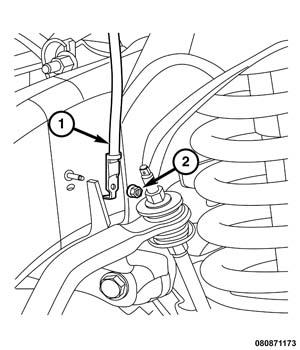

    Fig 2: Battery Negative Cable & Nut
    GC0155227Courtesy of CHRYSLER GROUP, LLC
  4. Remove nut (2) and the battery negative cable (1) from the frame rail.

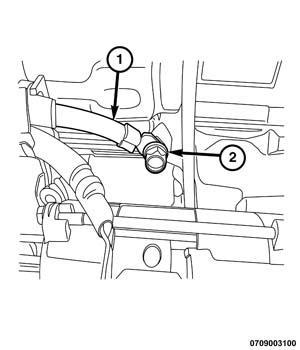

    Fig 3: Battery Negative Cable & Bolt
    GC0155272Courtesy of CHRYSLER GROUP, LLC
  5. Remove bolt (2) and the negative battery cable (1) from engine block.
  6. One at a time, trace the battery cable pushpin fasteners and routing clips and detach until the cable is free from the vehicle.
