Right Side Positive

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: B+ Cable & Nut
GC0155224Courtesy of CHRYSLER GROUP, LLC
  1. Install the battery cable and connect all pushpin's securing the cable.
  2. Install B+ cable (1) to the generator. Tighten nut (2) to 15 N.m (133 in. lbs.).

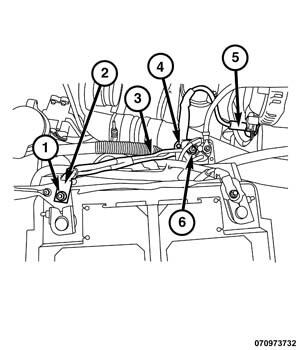

    Fig 2: Negative Battery Cable & Components
    GC0155313Courtesy of CHRYSLER GROUP, LLC
  3. Install the terminal cap (5) to the generator stud.
  4. Install the wire harness retainer pushpin at the oil filter housing.
  5. Install the wire harness retainer pushpin (4) at the intake air heater relay.
  6. Install the B+ cable to the intake air heater relay. Tighten nut (6) to 10 N.m (89 in. lbs.).
  7. Connect the positive cable (2) to clamp and tighten nut (1) to 10 N.m (89 in. lbs.).
  8. Install the battery positive cable. Tighten clamp nut (1) to 6 N.m (53 in. lbs.).
  9. Connect both negative battery cable. Tighten clamp nut (1) to 6 N.m (53 in. lbs.).
