Right Side Negative

WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

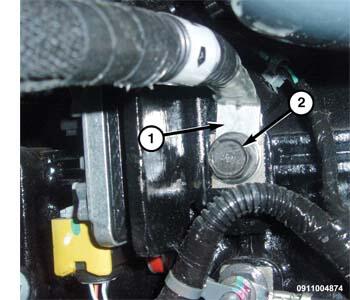

Fig 1: Battery Negative Cable & Bolt
GC0155170Courtesy of CHRYSLER GROUP, LLC
  1. Position the in the vehicle.
  2. Install the battery negative cable (1). Tighten bolt (2) to 40 N.m (30 ft. lbs.).
    Fig 2: Battery Negative Cable & Components
    GC0155160Courtesy of CHRYSLER GROUP, LLC
  3. Install the battery negative cable. (4). Tighten: Clamp nut (3) to 6 N.m (53 in. lbs.).
  4. Install the negative cable (1). Tighten nut (2) to 10 N.m (89 in. lbs.).
