6.7L Diesel
WARNING: This page is about a different car, the 2013 RAM 3500 HD and 2013 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

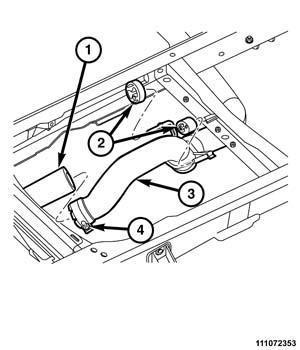

- Install the tailpipe into the selective catalytic reduction catalyst (1).
- Install the tailpipe (3) hanger rods into the isolators (2).
- Align the exhaust system, and tighten the band clamp (4) to 62 N.m (44 ft. lbs.).
- Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
- Lower the vehicle.
- Connect both negative battery cables.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
